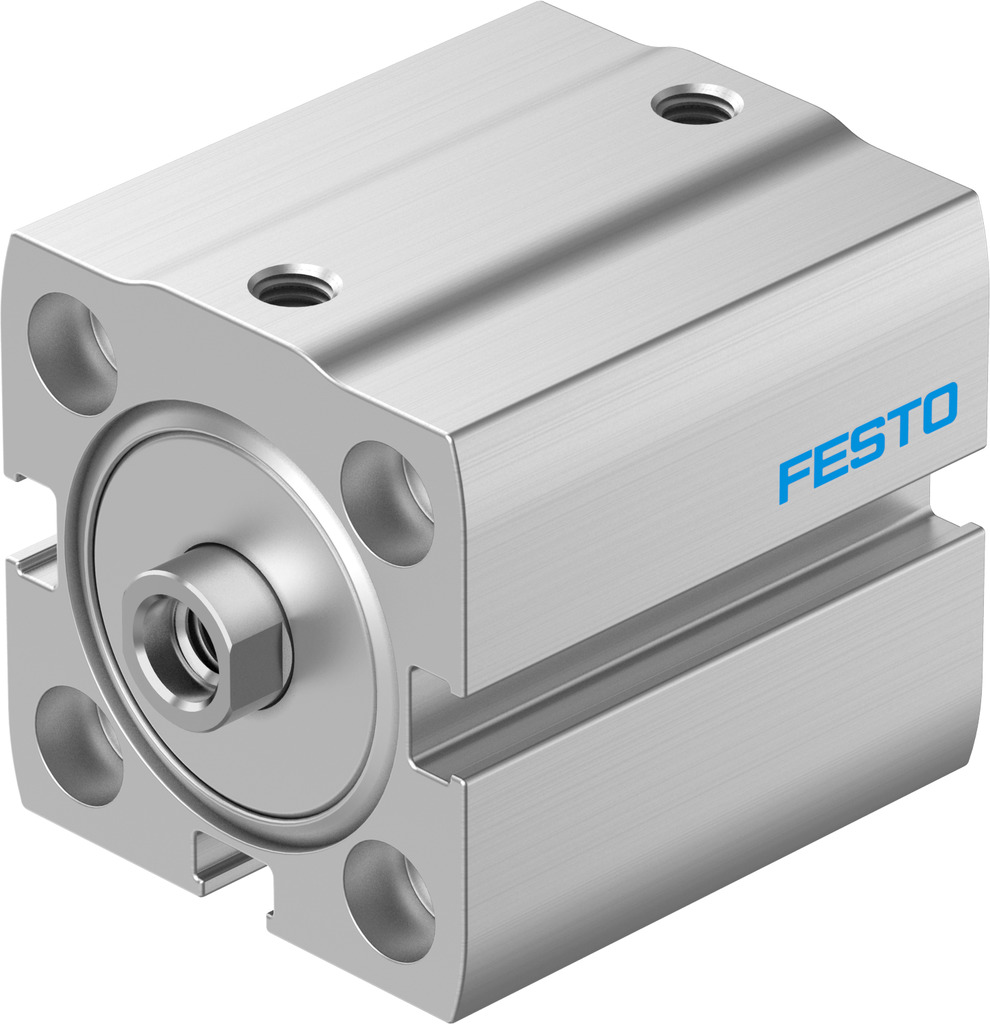

کامپکت سیلندر فستو ADN-S-12-5-I-P-A
۰ ریال
هم اکنون در انبار موجود نیست - اما میتوانید این محصول را پیش خرید کنید
توضیحات
Compact cylinder, double-acting ADN-S
ADN-S-12-5-I-P-A
Mode of operation
Double-acting
Piston diameter
12 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
68 N
Stroke
5 mm
Cushioning
Elastic cushioning rings/plates at both ends
Smaller systems yet better performance. This is a feat compact cylinders ADN-S are capable of. They are extremely small and light and deliver excellent performance with small movements. All thanks to the single-piece, compact housing.
- Minimal installation space
- Very lightweight
- Ideal for small movements
- Piston rod with female or male thread
- For position sensing
- Variants recommended for production systems for manufacturing lithium-ion batteries
- Sustainable in production thanks to reduced use of materials
با توجه به نوسانات نرخ ارز، لطفا پیش از خرید جهت استعلام قیمت با کارشناسان ما تماس بگیرید.
